Guide for BMW N54 Spark Plugs

Guide for BMW N54 Spark Plugs. Going over spark plugs for the BMW N54 engine can be a prolonged subject. While spark plugs are a quite simple component they’re exceptionally essential, and there’s a great deal that goes into the ideal arrangement. How often should you change spark plugs? What are cooler plugs as well as when are they needed? What are the best stimulate gaps as well as plugs? None of these question have best solutions, but there are some general standards. In this overview, we talk about some of the very best N54 spark plugs, 1-step & 2-step cooler, plug gapping, replacement periods, and a lot more.

Spark Plug Heat Ranges

All spark plugs remove some heat from the plug suggestion and transfer that heat to the engine cyndrical tube head. Chillier spark plugs are faster and also more efficient at moving heat away from the spark plug suggestion. When you hear cool plug it indicates the stimulate plug transfers heat away from the pointer rapidly, generally. Hot plugs are slower at moving the heat, which indicates the shooting pointer continues to be hotter.

As you enhance boost and also power on the N54 you’re raising cylinder burning stress. That leads to more heat than the N54 OEM Bosch spark plugs were created to handle. Consequently that may create pre-ignition as well as spark plug overheating. Bad. Going as well chilly can cause trigger plugs to foul faster than typical. This is since colder plugs may eliminate too much heat as well as not successfully burn deposits.

The general guideline is to go 1-step cooler for every single extra 75-100 horsepower. We agree with this to a little level, but it’s not a best rule of thumb for the N54. For instance, if you’re running 600whp (an extra 300+ horsepower) you do not need to go an entire 4-steps colder than stock. It’s overkill. When we review some of the finest N54 trigger plug alternatives, more on that.

Heat Ranges By Brand

When it comes to heat varieties, not all firms rank their spark connects just as. A range of 1-10 is pretty common, however some spark plug producers enter contrary order for hotter or chillier plugs. Therefore, a 10 heat rating isn’t the exact same across all brands. It’s the most popular spark plug for some as well as the coldest for others.

Spark plugs that higher numbers indicate hotter spark plugs consist of:

  • Champion
  • Autolite
  • Bosch

On the other hand, the complying with brands utilize greater numbers to show a chillier spark plug:

  • NGK
  • Denso

These aren’t exhaustive listings, but a couple of usual BMW spark plugs. Champion are OEM on several newer BMW engines. Bosch and also NGK are likewise usual OEM spark plugs for BMW.

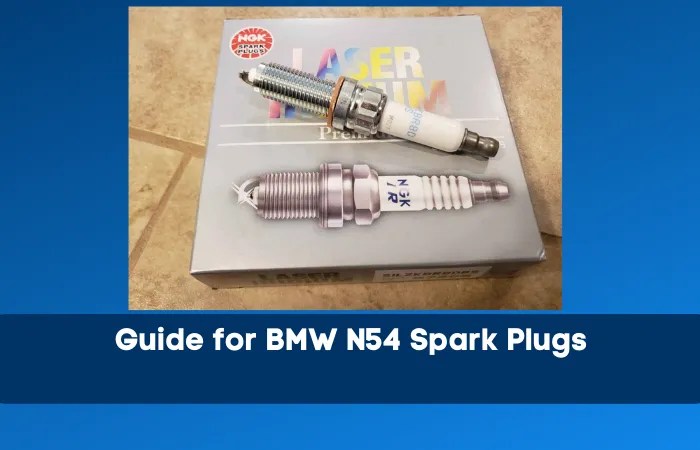

Guide for BMW N54 Spark Plugs

N54 Spark Plug Gapping

Gapping spark plugs is one more typical topic completely factor. It is very important to have an excellent spark plug gap for many factors. Too huge a gap can create misfire concerns while as well little a gap can lower air-fuel shed performance. So, what is the appropriate gap for N54 spark plugs? Allow’s jump in and also go over the significance of spark plug gaps and referrals for the 135i, 335i, and 535i.

* None of this info relates to the OEM Bosch 3-prong spark plugs. These ought to not be gapped. When you reach the demand to gap spark plugs you ought to be running 2-step or 1-step cooler single prong plugs, anyways. These consist of the N55 OEM Bosch connects and NGK 1 & 2-Step colder.

Why Gap Spark Plugs?

The spark plug gap affects the voltage called for to jump the gap as well as really light the air-fuel mix in the cylinder. A larger gap requires more voltage. Increasing gap dimension can in fact cause a more efficient burn considering that it enhances the spark location. Nonetheless, high cylinder pressures (compression proportion & boost) can burn out the stimulate if the gap is too large.

Therein exists the requirement to discover the right spark plug gapping for the N54 engine. As we enhance boost cylinder stress therefore raise. Subsequently, it increases the opportunity of turbulence as well as high-pressures burning out the trigger before it can fully light the air-fuel mix. In theory, the very best spark plug gap is right on the verge of the highest possible gap possible without running into stimulate blow out.

Recommended N54 Spark Plug Gaps

Once again, we wouldn’t advise attempting to gap the 3 prong N54 spark plugs. When it concerns 1-step and 2-step cooler N54 connects after that you might require to take into consideration transforming the factory gaps. We actually like the supply gapping on all of these spark plugs under ~ 450whp. There usually isn’t much demand to readjust gapping unless you’re pressing ~ 18-20+ psi on stock turbos.

If you start discovering misfires or other concerns, also then it’s finest to run the factory gaps and readjust as essential. Some people promptly suggest gapping down to 0.022 ″, 0.020 ″ or 0.018 ″. We believe it’s too hostile for the majority of, yet there are some general standards. Here’s a rough malfunction:

  • Stock-450whp: Supply gaps on any type of Bosch or NGK plugs from above. Rarely a requirement to change
  • 425-525whp: 0.024 ″.
  • 500-600whp: ~ 0.022 ″.
  • 550-700whp: ~ 0.020 ″.
  • 600-700+ whp: ~ 0.018 ″.

There’s overlap in these numbers permanently factor. Boost pressures, fuel type, and other aspects can impact these numbers. Some N54 engines may enjoy with a 0.022 ″ gap also at 700whp. Others might need a 0.018 ″ gap before 600whp. The above standards are a good beginning factor, however.

In summary: It’s good to have the biggest gap possible without facing misfire concerns. We like starting with supply spark plug gapping and also functioning our method down as essential. Use your own reasoning, however. If you’re relocating from supply turbos at 400whp to updated turbo( s) at 600+ whp you’ll possibly want new plugs and also start with an about 0.022 ″ or 0.024 ″ gap. If you observe misfires after that go to 0.020 ″ then 0.018 ″ if you’re still having problems. So on so forth.

135i, 335i, 535i Spark Plug Life.

We won’t invest as much time on N54 spark plugs life and also substitute intervals. It’s a relatively quick topic with no ideal solution considering that it relies on way too many private variables. Adjusting, mods, power output, driving practices, conditions, as well as more can impact spark plug life. If you’re mostly driving on the highway at constant speeds you must get more miles out of stimulate plugs contrasted to a comparable car going to the track or dragstrip every weekend.

Anyways, as with the various other topics there are some basic rules here. N54 spark plug substitute intervals are about:.

  • Stock– 30,000 to 50,000+ miles.
  • Tune– 15,000 to 30,000 miles (tune-only or tune + marginal bolt-ons).
  • FBO– 10,000 to 20,000 miles.
  • Updated turbos: 7,000 to 15,000 miles.

On a bone supply N54 small chauffeurs might see 50,000+ miles out of spark plugs, yet it can be much less if you’re using the power often. Include a tune and you reduced spark plug life approximately in half. Complete bolt-ons with an extra aggressive tune and greater increase as well as you’ll get even much less life. Turbo upgrades at 600-700+ whp can promptly reduce spark plug life under 10,000 miles.

N54 1-Step & 2-Step Colder Spark Plugs.

While chillier options may exist the 1-step as well as 2-step colder spark plugs are the most common selection on the N54. Amongst the two most popular are the NGK 97968 1-step colder and NGK 97506 2-step cooler. These are normally good options even for 600-700+ whp builds, which is why we do not completely agree with the 75-100 horsepower rule.

Anyways, we’ll discuss these spark plugs even more in-depth in the next section. We just wished to highlight a couple of typical choices for chillier spark plugs on anything from supply to 700+ whp N54’s.

Ideal N54 Spark Plugs.

Listed below we’ll note a few of the very best spark plugs for the BMW N54 engine. A number of these are very shown spark plugs. There are various other good alternatives that individuals have success with. Because of this, this isn’t an exhaustive checklist of all plugs for the N54 engine. These are simply items we suggest based upon personal experience running these on our 2007 335i, 2008 135i, and 2008 535i.

Read more: Review, Reliability, and Driveability of the BMW E39 M5

* Please note– power numbers below are rough quotes of where we such as each spark plug. For example, some run OEM N54 spark plugs over 400whp uncreative while others like to run the NGK 2-step chillier spark plugs even at 350-400whp. If your existing spark plug configuration has been functioning after that there’s very little reason or benefit to altering points. Nevertheless, if you’re intending to include more power then it is typically an excellent concept to start considering higher quality, colder spark plugs.

1. N54 OEM Bosch ZGR-6-STE2 Spark Plugs (stock-400whp).

Lots of suggest transferring to a 1-step cooler heat variety for every additional 75-100 horse power. That’s typically about where the OEM Bosch products stand. We like them as much as 350-400whp, yet some run them as much as and also beyond 450whp. Our 2007 335i ran these spark plugs on stock turbos at 18-20psi with 30-40% E85 for a couple years. They stood up alright as well as misfires weren’t a major concern but the spark plugs did have periodic missteps.

Conforming to a 1-step chillier NGK spark plug did seem to aid tidy up timing and also misfires ended up being much less usual. Specific results can differ from car to auto. Still, the OEM plugs can start coming to be more bothersome also far past 400whp. If you’re around that number and also aren’t having concerns after that there isn’t much factor to transform points.

2. N55 OEM Bosch Spark Plugs for N54 (stock-500whp).

The manufacturing facility N55 spark plugs are the Bosch ZR-5-TPP-33 and also are a good option for the N54 too. They’re in fact 1-step chillier than the N54 spark plugs, so they can aid support some extra power. We like relocating to an iridium spark plug– like the NGK options– at roughly 450-500+ whp degrees. Also listed below that we would still choose the NGK 97968 1-step chillier N54 plugs.

The NGK plugs are much more costly as well as can have much shorter life-spans. This makes the N55 OEM Bosch spark plugs a solid choice for the N54. If it’s time to relocate on from the stock N54 plugs, at a sensible price for a 1-step colder spark plug you might desire to offer these an opportunity.

3. NGK 97968 1-Step Colder Spark Plugs (350-600whp).
* Formerly NGK 95770.

This is our N54 spark plug of selection considering that the majority of ours fall in the 400-550whp ballpark. It’s a great alternative for bolt-on supply turbo cars right up to 550-600+ whp solitary turbo or double turbo constructs. We prefer the 2-step cooler plugs a lot above 550whp.

Anyways, we actually like these spark plugs as well as they’re extremely verified on the N54 135i, 335i, 535i, as well as more. The only time we have actually personally seen misfires on the NGK 1-step is right near completion of their useful life. They’re still succeeding on the 335i with RB Twos Plus turbos as well as 100% E85 on port injection. We intend to boss around 550-575whp, so we’ll possibly move back to the 2-step colder next time the spark plugs need altering.

4. BMW N54 NGK 97506 2-Step Colder (500-700+ whp).

If you want one of the most tried and tested BMW spark plugs then look no further. Individuals run these spark plugs on every little thing from extremely modded N54, N55, N63, S55, S63, B58, as well as more engines. They’re in fact OEM spark plugs for the N20 inline-4 turbo engine. Anyways, they operate as 2-step chillier plugs for the N54, but on most various other BMW turbo engines they’re just 1-step colder than stock.

On the N54 you can locate people running these spark plugs with success also at near-stock power levels. The main danger of going too cold is just early wear as a result of fouling/build-up. We assume these plugs are excessive for much less than 500whp as the NGK 97968 1-step is a terrific choice. Nonetheless, these 2-step colder spark plugs are still a good option for anything ranging from ~ 400whp to 700+ whp.

Conclusion of N54 Spark Plugs By Power.

Which spark plug is right for each and every individual, engine, mods, tuning, etc can differ a lot. That’s why we put some bigger as well as overlapping power levels above. It’s not such as all OEM spark plugs are going to begin having endless concerns right at 375-400whp. 2-step cooler spark plugs are possibly OK also at 400whp.

They’re still generally good guidelines to adhere to. The more boost and heat you generate the even more heat you require to move away from the firing ideas. There isn’t much need or factor to go overkill and also obtain also cold of a spark plug, either. The following is a specific list of our spark plug preferences:.

  • OEM Bosch: Stock-375whp.
  • OEM N55 Bosch: 375-450whp (budget plan alternative).
  • NGK 97968 1-Step: 375-550whp.
  • NGK 97506 2-Step: 550-700+ whp.

There are some exemptions to these regulations. For example, supply turbos at insane high increase like 22-24psi is mosting likely to generate serious heat. This is most likely just 475-500whp, yet you might be ideal matched to 2-step colder plugs. It takes a bit of your own judgement, yet error on the side of caution. , if you’re on the edge of OEM vs 1-step or 1-step vs 2-step you’re likely better off going colder.

* You can locate every one of these options at Products are laid out in an easy to see and read format with totally free 2-5 day shipping to all 50 US states together with well priced priority and over night options.

BMW N54 Spark Plugs Summary.

It is necessary to have the right spark plug configuration on your modded N54 engine. They’re rather basic parts but play a major function in correct engine operation. With various considerations it can be challenging to identify the most effective setup for your BMW. Determining the ideal N54 spark plugs as well as gapping isn’t an excellent scientific research, however there are basic guidelines to adhere to.

Cooler spark plugs help move heat far from the firing tip and also right into the engine head. As increase enhances there’s more burning heat, so it necessitates a cooler spark plug. We like moving to NGK 1-step colder spark plugs over the 350-400whp ball park as well as up to ~ 450-550whp. Above that power you must consider moving to NGK N54 2-step chillier plugs.

Following is gapping as too large a gap can trigger burn out and misfires. A larger gap does assist with burn performance so it can be negative to gap the plugs as well far down. We like stock N54 plug gaps under 450whp and also over that power it’s ideal to adjust down in increments as necessary. If you’re having concerns, Beginning around 0.024 ″ spark plug gaps and also function your way down around 0.002 ″.

Inevitably, there aren’t ideal answers to any one of these inquiries and often it requires some experimenting. Complying with the basic standards won’t injure. We’ve located a lot of these guidelines work well on the majority of N54 spark plugs.
